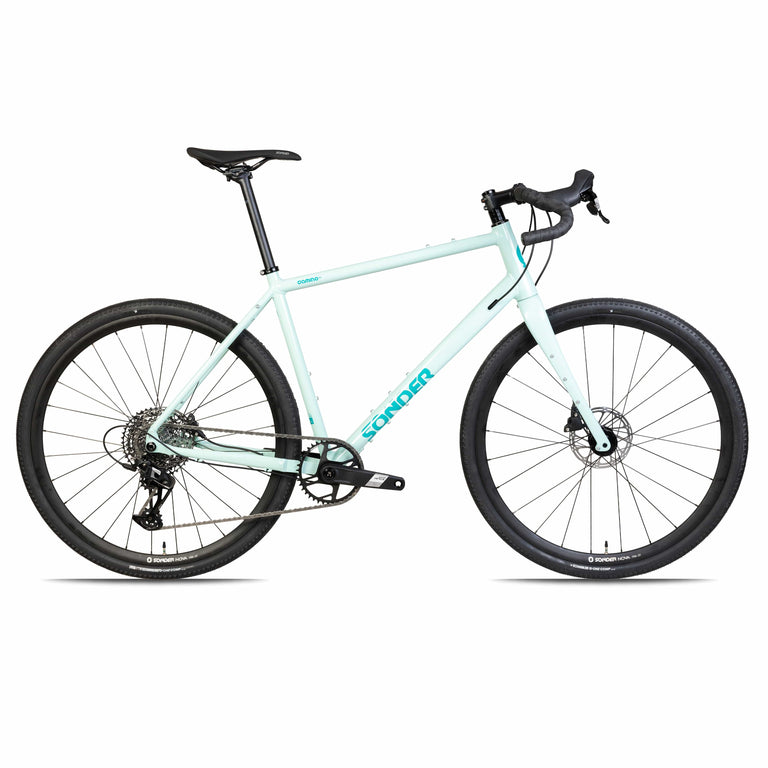

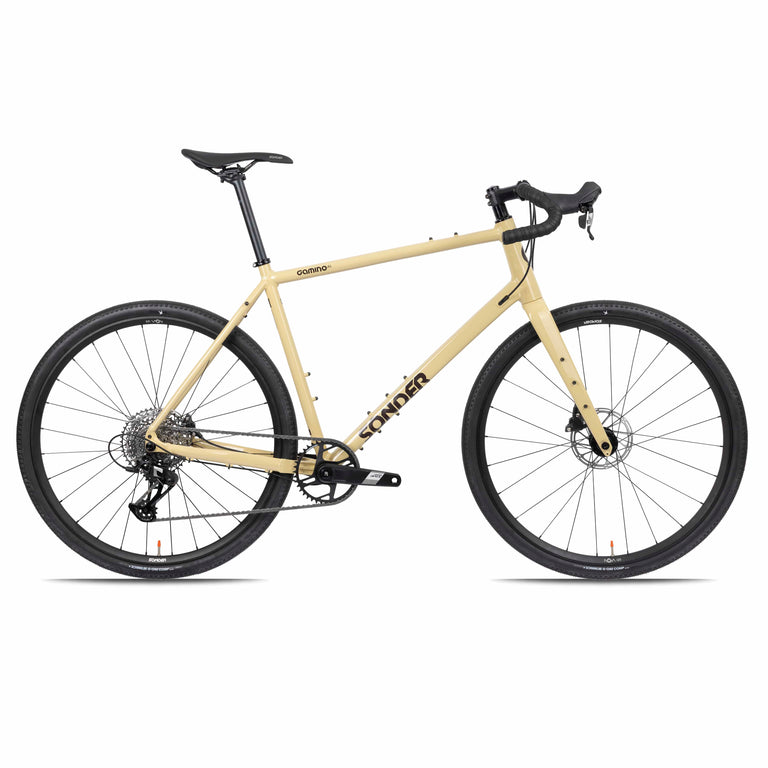

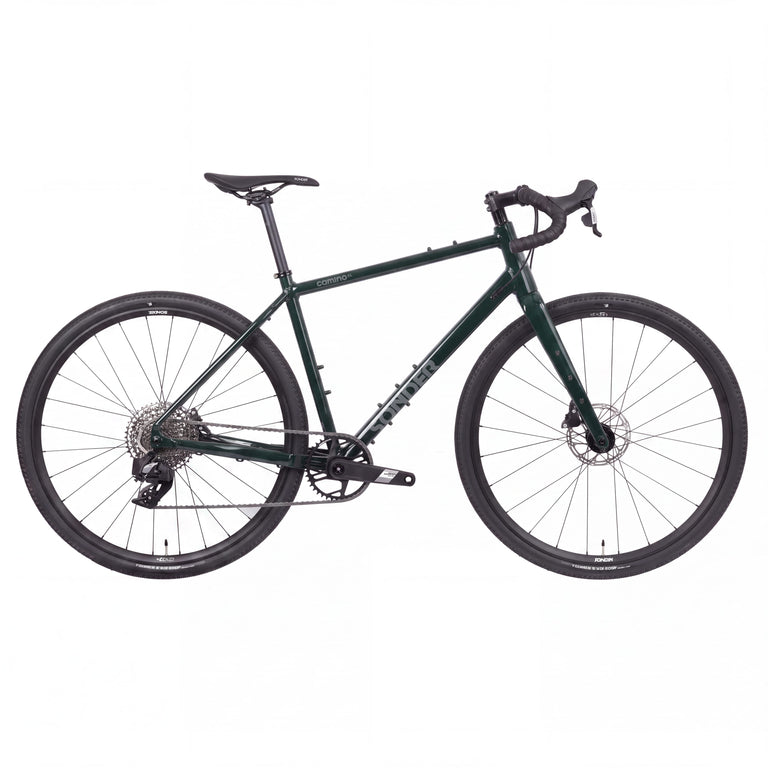

Camino Al Apex1 Hydraulic

Photos for illustration purposes. Please check the bike spec for detailed component listings.
Pre Order

Camino Al Apex1 Hydraulic

Drop bar gravel bike

$1,449.00

Aluminium Camino with flared drop bar for greater comfort over distance, with the SRAM Apex1 groupset and hydraulic brakes for precise performance on rough terrains.

Read more

Read more

This bike is covered by our 28 Day Ride Guarantee
Customise your bike on the next page.

Buy Now. Deliveries from 7 December.

Build your bike

Select your size and make any changes you want from the standard build. When you’re done, hit Add to Bag at the bottom of the page

  • Frame

    Size
    Please select your Size
    Colour
    Please select your Colour

    Configure your Frame

    size

    • Medium

    • Large

    • X-Large

    colour

    • Pacific

    • Black

    • Sage

    • Mint

  • Configure your

  • 1. components

    Handlebar
    Sonder Bomber 56cm
    Seatpost
    Sonder Seatpost 27.2mm / 400mm

    Configure your 1. components

    Handlebar

    • Sonder Bomber 56cm

    • Sonder Bomber [OEM]

      Flared drops have found popularity in the cycle-cross and gravel racing communities where control and stability over off-road surfaces is important. For the long distance tourer flared drops give an even greater range of hand positions, allowing you to shuffle around on the bars and reduce fatigue.

    • Love Mud Hurricane 42cm

      +$0.00

    • Love Mud Hurricane

      Get down in the drops and take your adventure to the road with these classic aluminium drop bars.

      Hurricane is a reliable bar for your road based adventures. Made from 6061-T6 grade aluminium and with a 70mm reach and 120mm drop and weigh 320 grams. A tried and tested design that will provide comfort and control as you eat up the miles.

    • Sonder Spitfire 42cm

      +$0.00

    • Sonder Spitfire

      Head down; dig deep; keep on pedalling.

      The Spitfire was made for three things: speed, agility, and comfort, exactly what you’re after when you’re pedalling hard or out for a long day on the road.

      Best suited to a road bike, the slight flare improves handling, so you can put it on your gravel bike too.

    Seatpost

    • Sonder Seatpost 27.2mm / 400mm

    • Sonder Seatpost [OEM]

      A seat post that is reliable and offers adjustability to help you find your ultimate riding position.

      Membar is all about adjustability. With a twist of your allen key the micro adjustment rail clamp allows the saddle angle to be fine tuned to your ideal position.

      Your saddle can be fitted with minimal faff thanks to a quick release action that allows the upper rail clamp to be released without removing the retaining bolt. The lower rail clamp is secured to the seat post which means that it will not fall in the mud when you are trying to fit your saddle.

  • 2. wheels

    Tubes
    Inner Tubes
    Wheels
    Sonder Nova 700c Wheelset

    Configure your 2. wheels

    Tubes

    • Inner Tubes

    • Inner Tubes
    • Tubeless Tyre Upgrade and Setup

      +$54.99

    • Tubeless Tyre Upgrade and Setup

      Go tubeless

    Wheels

    • Sonder Nova 700c Wheelset

    • Sonder Nova 700c [OEM] Wheelset

      1Sonder Novas are our reliable, versatile disc brake wheelset built for all seasons. Wide-tyred, tough, and versatile, the Nova 700c wheelset is ready for adventure on road and trail.

      19mm wide tubeless-ready rims are perfectly suited for 28 – 50mm tyres, which means more traction through a broader contact patch and lower rolling resistance. Novas are machine built for precision on Sonder’s sealed hubs, which are 12mm thru-axle front and rear.

      We’ve designed the Novas to be a reliable, long-term part of your bike. You could go round the world on them. Plain-gauge spokes mean that the Novas will stay strong when you load your bike up with luggage. Sealed bearings make them easy to look after. And a steel free-hub body will take years of abuse.

      Novas give a beautifully balanced ride, spin up to speed quickly and roll easily on super-smooth bearings. They’re the wheels we choose when we want to keep all our options open – road, gravel, luggage, doesn’t matter!

    • Sonder Nova 650b Wheelset

      +$0.00

    • Sonder Nova 650b [OEM] Wheelset

      Sonder Novas are our durable and quick disc brake wheelset built for gravel adventures and road plus smoothness. Wide-tyred, tough, and versatile, the Nova 650B wheelset is ready for adventure on miles and miles of trails.

      Novas are machine built for precision on Sonder’s sealed hubs, which are 12mm thru-axle front and rear.

      We’ve designed the Novas to be a reliable, long-term part of your bike. You could go round the world on them. Plain-gauge spokes mean that the Novas will stay strong when you load your bike up with luggage. Sealed bearings make them easy to look after. And a steel free-hub body will take years of abuse and sound beautiful.

      Novas give a beautifully balanced ride, spin up to speed quickly and roll easily on super-smooth bearings. They’re the wheels we choose when we want to go gravel riding for miles and miles with the freedom to worry about nothing except for what’s over the next hill.

      Key Features

      • Wide rims increase the contact patch of tyres and reduce rolling resistance
      • Plain-gauge stainless steel spokes make wheels strong enough to load up your bike with gear
      • Sealed cartridge bearings mean low maintenance
      • 3 year Alpine Bond

      Wheel Spec

      • Nova Rim: Tubeless-ready. Internal width 23mm. Takes 650Bx47mm road plus up to 27.5x2.2" MTB tyres
      • Nova hub: 12mm thru-axle
      • Sealed cartridge bearings
      • Steel free-hub body for durability
      • Spokes: Stainless steel plain-gauge
    • Sonder Alpha 700c HG

      +$179.99

    • Sonder Alpha 700c [OEM]

      Sonder Alphas are our performance wheelset. It’s a light, versatile disc brake wheelset built for riding fast in all seasons. And while they’re made for speed, Alphas still easily take wide tyres and are tough enough to load up for multi-day trips on the road and trail.

      20mm wide rims are perfectly suited for 28 – 50mm tyres, which means more traction through a broader contact patch and lower rolling resistance. Alphas are machine built for precision on Sonder’s sealed 6 pawls hubs, which have 120 engagement points in the freehub to give you immediate engagement when you start pedalling (most hubs only have 60, which means you have to turn the pedals further before engaging the freehub). Oh, and the hubs sound amazing!

      Alphas have been designed to be a durable, long-term part of your bike. They’ve been designed with long rides and endurance racing in mind – these would be a perfect choice for the Transcontinental Race. Sealed cartridge bearings make them easy to look after. And an alloy freehub body will take miles and miles of abuse.

      Alphas give a beautifully fluid ride. Light rims mean they spin up to speed quickly while super-smooth bearings keeping you rolling and rolling. They’re the wheels we choose when we want to go far, fast. Road, gravel, loaded for multi-day racing, these wheels fly!

    • Sonder Alpha 650b HG

      +$179.99

    • Sonder Alpha 650b [OEM]

      Sonder Alphas are our performance disc brake wheelset. The 650B Alphas are built specifically for gravel adventures and road plus speed. And while they’re light, they stay super-strong and practical – they’ll easily take wide tyres and are built for riding fast over miles and miles and of trails. When we designed the Alphas we were thinking about the wheels we’d choose to race Tour Divide or a quick day out at Dirty Reiver.

      Our design team’s expertise along with the factories we use mean that we can accelerate trickle-down technology to this price point.

      The Alpha’s tubeless-ready rims are suitable for 47mm road plus up to 2.2" MTB tyres, which means they’ll take any of the vast array of gravel tyres available to suit our specific adventures. By using tubeless tyres you’ll be able to run lower pressures, giving you even better traction and control.

      Alpha hubs run on sealed cartridge bearings, which are 12mm thru-axle front and rear. We’ve used a 6 pawl freehub to give 120 points of engagement for immediate pedalling response (most hubs only have 60, which means you have to turn the pedals further before engaging the freehub). Oh, and the hubs sound amazing!

      Alphas have been designed to be a durable, long-term part of your bike. They’ve been designed with long rides and endurance racing in mind – these would be a perfect choice for gravel racing and fast multi-day trips. Sealed bearings make them easy to look after. And a steel free-hub body will take miles and miles of abuse.

      Alphas give a beautifully fluid ride. Light rims mean they spin up to speed quickly while super-smooth bearings keeping you rolling and rolling. They’re the wheels we choose when we want to go far, fast. Road, gravel, loaded for multi-day racing, these wheels fly!

  • 3. pedals

    Pedals
    No Pedals

    Configure your 3. pedals

    Pedals

    • No Pedals (none)

    • No Pedals
    • Sonder Torque Black

      +$34.99

    • Sonder Torque

      Pedals: the humble yet essential afterthought that make all that time spent pondering over components worth the pain. Where would we be without them?

      Seriously grippy, reliable, and stable; Torque gives you the confidence to put down the power whatever the weather.

      A light and tough thermoplastic body combined with LSL sealed bearings around a CNC machined Cr-Mo makes Torque the kind of pedal you can depend on to withstand hours of use and abuse.

      Twelve 4 mm replaceable grip pins on each side of the pedal let you customise how much grip you’ll need and boost durability.

    • Sonder Slingshot Black

      +$49.99

    • Sonder Slingshot

      The wide platform Slingshot pedal is designed to provide the support, control and confidence you need for a variety of riding, whether on trail, gravel or road.

      • Wide 87x90 platform made from 6061 aluminium
      • Double-sided adjustable SPD clips
      • Chromoly axle with sealed bearings

      The Slingshot's wide foot platform provides plenty of support to the foot for more comfortable pedalling over long distances, reducing hot-spots. This additional foot support also gives you greater control of the rear end of the bike on tight turns or technical trail.

      If you're using the Slingshot for mountain biking, the pedal's wide surface gives you a platform to stand on unclipped, ready to bail out if needed, on heart rate-quickening sketchy sections.

      With double-sided SPD clips and a large pedal area, the Slingshot is easy to clip in and out of in a hurry. A clipless system provides greater pedalling efficiency when climbing and more control when descending.

    • Shimano M520 Pedal Black

      +$49.99

    • Shimano M520 Pedal
    • Shimano RS500SL Pedal Black

      +$49.99

    • Shimano RS500SL Pedal
  • 4. accessories

    Bottle cages
    No Bottle Cages
    Lights
    No Lights
    Mudguards
    No Mudguards
    Pannier
    No Pannier Rack

    Configure your 4. accessories

    Bottle cages

    • No Bottle Cages (none)

    • No Bottle Cages
    • Sonder Buzz Wire Single

      +$4.99

    • Sonder Buzz Wire [OEM]

      The easiest and most convenient way to carry water on your bike, a classic cage design that holds your water bottle nice and snug.

      Buzz Wire is reassuringly durable, weighs just 65 grams and will carry your 500 or 750 ml water bottle with ease.

      If you are on expedition and looking for a way to pass a rest day make a bent wire loop and challenge someone to a game of Buzz Wire!

    • Sonder Buzz Wire Pair

      +$8.99

    • Sonder Buzz Wire [OEM]

      The easiest and most convenient way to carry water on your bike, a classic cage design that holds your water bottle nice and snug.

      Buzz Wire is reassuringly durable, weighs just 65 grams and will carry your 500 or 750 ml water bottle with ease.

      If you are on expedition and looking for a way to pass a rest day make a bent wire loop and challenge someone to a game of Buzz Wire!

    • Sonder Sideblade Left Entry / Black

      +$5.99

    • Sonder Sideblade

      The Sideblade bottle cage not only gives your water bottle a lovely, secure hug, but its side loading system makes it easier to access when you need a drink, making staying hydrated a joy even when you've got a load of frame bags to work around!

      The Side blade is geared at letting you get to your water when you've got a bike packed up with frame bags, this means that it's also ideal for compact and full-sus frames where a standard loading bottle cage system just won't fit, you can choose which side you'd like to access your bottle by with a twist of the cage in the mount before your ride.

      Made of polycarbonate, the Sideblade is also super light and super duper tough - hooray!

    • Sonder Sideblade PAIR / Black

      +$0.00

    • Sonder Sideblade

      The Sideblade bottle cage not only gives your water bottle a lovely, secure hug, but its side loading system makes it easier to access when you need a drink, making staying hydrated a joy even when you've got a load of frame bags to work around!

      The Side blade is geared at letting you get to your water when you've got a bike packed up with frame bags, this means that it's also ideal for compact and full-sus frames where a standard loading bottle cage system just won't fit, you can choose which side you'd like to access your bottle by with a twist of the cage in the mount before your ride.

      Made of polycarbonate, the Sideblade is also super light and super duper tough - hooray!

    • Sonder Sideblade Right Entry / Black

      +$0.00

    • Sonder Sideblade

      The Sideblade bottle cage not only gives your water bottle a lovely, secure hug, but its side loading system makes it easier to access when you need a drink, making staying hydrated a joy even when you've got a load of frame bags to work around!

      The Side blade is geared at letting you get to your water when you've got a bike packed up with frame bags, this means that it's also ideal for compact and full-sus frames where a standard loading bottle cage system just won't fit, you can choose which side you'd like to access your bottle by with a twist of the cage in the mount before your ride.

      Made of polycarbonate, the Sideblade is also super light and super duper tough - hooray!

    Lights

    • No Lights

    • No Lights
      -
    • Tau Rear

      +$19.99

    • Tau

      Bright enough to blind you when you turn it on so you can be sure that other road users will also see you.

      Tau+ front safety light offers 65 lumens of 270° ultra wide lighting with 10 m beam distance.

      Tau- rear safety light will shed out 20 lumens of 270° ultra wide lighting from the red COB LED strip

      Tau is visible from up to 100 m and is water resistant so they will happily brighten your way even on the gloomiest of days and is impact resistant from 1 m.

      Switch protection prevents any unwanted battery usage and battery capacity indicator will let you know when the juice is running low.

      Only 22g including the USB rechargeable battery and LED lights that never need replacing will keep you light and bright for years to come!

      Each Tau light comes with a bigger and a smaller strap to fit with most bars/seat posts and if you need it even bigger, just lace the bands together to make a larger loop.

    • Exposure Trace Pack Exposure Trace Pack

      +$109.99

    • Exposure Trace Pack

      The Trace MK2 + TraceR DayBright is a lightweight front and rear rechargeable light set for staying safe and visible when commuting and road cycling at night.

      Manufactured in the UK, they both come in an aluminium body with three different brightness settings, six lighting modes, side illumination and seat post and handlebar mounts compatible with multiple different mounts. The Trace MK2 has a 10% power increase on the old model and a traffic light Fuel Gauge so you don’t get caught out.

      The DayBright pulse pattern is specially designed to be more visible in daylight than a regular light pulse, and is visible from over a kilometre away - even in the brightest part of the day.

      The TraceR MK1 DayBright comes with Exposure's Optimised Mode Selector. This allows you to choose a light pattern and brightness that fits your ride type and length, whether it's a quick dash across town or an all-night adventure.

    Mudguards

    • No Mudguards (none)

    • No Mudguards
    • SKS Bluemels Mudguard Set 28 / 53mm / Black

      +$39.99

    • SKS Bluemels Mudguard Set
    • Sonder Fender Front MTB

      +$0.00

    • Sonder Fender

      The Sonder Front Fender protects you from excessive mud splatter on wet, mucky trails. These lightweight plastic mudguards don’t require any special fixings on your bike and can be strapped straight onto your forks with 4 cable ties (supplied).

      Made from durable polypropylene, if the Fender does meet its end, it can be easily recycled by most councils or at your local recycling centres.

    Pannier

    • No Pannier Rack (none)

    • No Pannier Rack
    • Sonder Mool

      +$19.99

    • Sonder Mool

      Mool is a tubular aluminium pannier rack designed to turn your adventure cross bike into a fast expedition tourer.

      Designed to work perfectly with our Sonder bikes, the Mool is a versatile and adaptable being, and will fit most bikes with traditional mounts.

      So that the Mool always has your back, a tailgate plate permits 50 and 80 mm lights or a suitable reflector.

  • Finishing kit

    Saddle

    Configure your Finishing kit

    Saddle

Initial Price
$1,449.00
Extras
$0.00
Grand Price
$1,449.00
Go to Checkout
Description

Camino Al is built for those moments when the road turns into trail and the bridleway drops off into single track. Spritely and comfortable on the tarmac with enough in reserve to explore off-road trails, it transforms your riding experience and turns dead ends into possibilities.

Capable, tough and quick aluminium adventure bike for exploring the world.

At a glance
  • Capable, durable, and quick aluminium adventure gravel bike

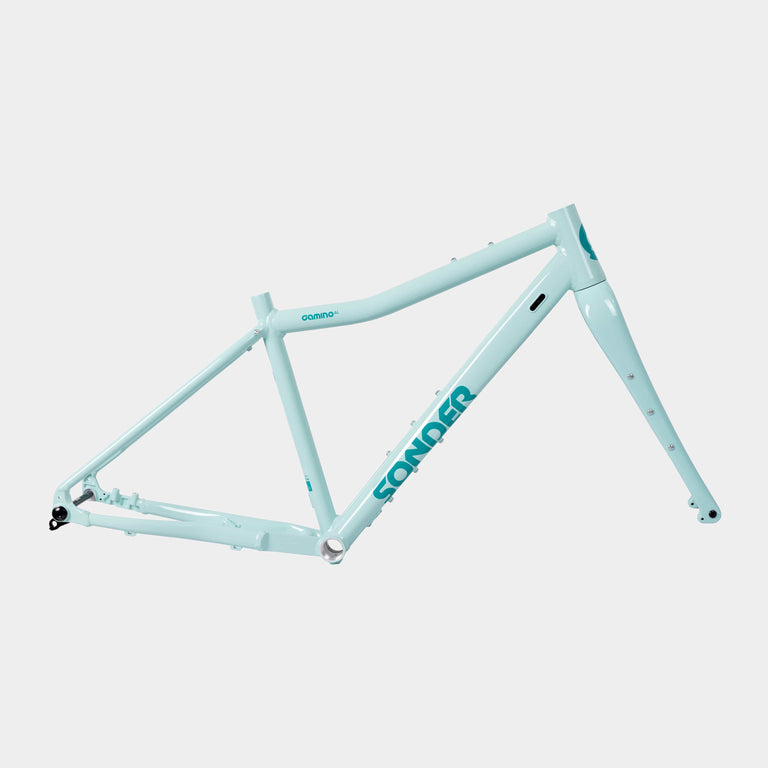

  • Frame: Sonder Camino Alloy Frame
  • Fork: Sonder Camino Al Carbon bladed fork
  • Drivetrain: SRAM Apex1 / 1 x 11 / 11-42
  • Brakes: SRAM Apex 1 Hydraulic Disc Brakes
  • Wheelset: Sonder Nova 700c / Shimano
  • 12 mm front and rear bolt through axles
  • Tyres: WTB Resolute / Comp / 700c / 42c
  • 700 x 50mm or 650b x 2.1 tyre clearance
  • Rack/guard mounts on the fork and rear

Infused with DNA from cyclocross, gravel, and adventure race bikes, the Camino’s relaxed geometry was designed for long day comfort, with a longer wheelbase, slacker head angle and lengthened headtube for a more natural riding position.

A low bottom bracket and short chainstays make it agile through the corners whilst the slackened head angle inspires confidence when descending.

The aluminium frame is tough enough to take a knock or two, so you can lose yourself in the journey and push the technical envelope of your travel or even your commute. Effortlessly adaptable, the Camino is as proficient on your local trail as it is on the open road, with tyre clearance up to 700c x 50mm or 650b x 2.1" for that added traction and comfort on bumpier terrain.

Responsive and exhilarating even when loaded up with luggage; rack, bottle cage and mudguard mounts give you the option to pack up and pedal off on a self-supported ride whenever the feeling takes you. Triple cage mount on the top of the downtube allows for 2 different mounting positions for the bottle cage for extra bag clearance or to fit a Lug-Kage. SRAM Apex1 SRAM’s Apex1 groupset gives reliable shifting action at an unrivalled cost. X-Sync tooth profile ensures secure engagement between the chainring and chain to stop it from coming off. The X-Horizon derailleur and Roller Bearing Clutch to keep the chain gap consistent and taught, preventing chain slap on rough terrain.

The 1 x 11 gearing, with an 11 – 42t cassette, offers a gear range that is wide enough to cope with any terrain, opening up the alpine passes to mere mortals with enough at the top end to cruise up on the flat.

Chainring Sprocket Ratio Wheel Diameter (inches) Gear Inches
40 11 3.64 28.2 102.5
40 42 0.95 28.2 26.9
Features

Expedition geometry

Fast and responsive even when loaded up. With a lightweight aluminium frame, carbon forks, long wheel base and an extended head tube, the geometry promotes an upright riding position for all-day riding comfort.

Cable routing

External cable routing facilitates maintenance when you haven’t got access to a full workshop; cables are fully housed to keep your machinery running smoothly in all conditions.

Tyre clearance

Big tyre clearance for tackling mixed terrains: up to 650b x 2.1” or 700c x 50 mm

Powerful and firm braking

Well-modulated seatstay mounted hydraulic disk brakes will help to bring you to a halt and reduce the risk of wheel lock when that elk appears out of nowhere.

Carbon fork

Lightweight, strong and responsive with an alloy steerer; kitted out with mudguard mounts which accommodate racks for lightweight loads

Rack mounts

The triple cage bottle mount on top of the downtube allows for 2 different mounting positions. Opt for the modern ultra-light bikepacking luggage or load up with panniers on the rear rack mounts.

Build Spec
Build Camino Al Apex1 Hydraulic
Frameset
Frame: Camino Al Frame [V3]
Fork: Camino Al Forks [V3]
Headset: FSA Orbit C-40-ACB Headset / 7.8mm Spacer
Seat Clamp: Love Mud Gromit / 31.8mm
Group Set
Rotors: Avid Centreline Rotor / 160mm
Rear Mech: Sram Apex Rear Derailleur / 1 / Long
Rear Shifter: Sram Apex 22 Shifters / Hydraulic / Right / Flat
Chainset: Sram Apex 1 Crankset GXP / 172.5mm / 40
Bottom Bracket: Sram GXP Bottom Bracket / Standard
Chain: Sram PC1110 Chain / 118 Links
Cassette: Sram PG1130 Cassette / 11 / 11-42
Finishing Kit
Stem: Love Mud Storc 31.8mm / 80mm
Seatpost: Love Mud Membar / 27.2mm / 400mm
Saddle: Love Mud Abode / Black
Tape/Grips: Love Mud Reels / Black
Handlebar: Love Mud Bomber
Wheelset
Wheels: Love Mud Nova 700c Wheelset / Shimano
Front Tyre: WTB Resolute / Comp / 700 / 42
Rear Tyre: WTB Resolute / Comp / 700 / 42
Tubes: WTB Inner Tube / 700 / 28-38
Weight
Frame: S: 1.9kg; M: 2.0kg; L: 2.0kg; XL: 2.1kg
Fork (uncut): 0.84 kg
Built: S: 10.56kg; M: 10.59kg; L: TBC; XL: TBC
Pedals not included with full builds
Geometry and Sizing

Sizing

Generally we recommend:
Small
Riders between 5ft 2in and 5ft 7in
Medium
Riders between 5ft 6in and 5ft 10in
Large
Riders between 5ft 9in and 6ft 2in
X-Large
Riders 6ft 2in and over
You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.
Size Small Medium Large X-Large
ST - Seat tube 460 490 520 550
TT - Top tube 530 556 576 604
HT - Head tube 140 160 180 200
HA - Head angle 71 71 71 71
SA - Seat angle 74.5 74 74 73
CS - Chainstay 435 435 435 435
BB - BB drop 73 73 73 73
FO - Fork offset 50 50 50 50
WB - Wheelbase 1020 1040 1062 1070
SO - Stand over 743 761 785 808
RE - Reach 370 385 400 410
SK - Stack 568 587 605 624
Frame Spec
  • Weight: S: 1.9kg; M: 2.0kg; L: 2.0kg; XL: 2.1kg
  • 6061 Aluminium
  • Carbon fork with alloy steerer
  • Seatpost diameter: 27.2mm
  • Seat tube OD 31.8 mm
  • Headset: IS42/28.6 | IS52/40
  • Disk brake only
  • Mud guard and pannier rack mounts 700 x 50mm or 650b x 2.1” tyre clearance 12mm bolt through axles at both ends
Reviews
Kudos
Active Traveller: Sonder Camino Al

An excellent option for all round adventuring

Read the full review here.

Advntr Review the Sonder Camino Al

Sonder have played a blinder with the Camino, producing a fast, fun and comfortable bike with no obvious flaws. Often we test bikes that have a but… , such as a high cost, a press fit BB or feeling weighty but not here. The Camino lives up to the ideal of an Adventure bike, a compromise of road vs trail, but without ever feeling out of its depth.

Read the full review here.

Camino Al featured in IMB mag

Up front, it was flared drops that really had us surprised, thinking they were just a quirky, beard stroking addition; they are fundamental to the stability of handling in the rough.

Read the full review here.

Camino Al in Top 10 Adventure Bikes of 2018/2019

The comfortable position is perfect for gravel excursions or riding long distances loaded with luggage.

See the full list here.

Cycling Weekly review Camino Al

If you’ve made it this far, it’s clear that I’ve very much enjoyed my time on the Camino AL. So much so, that I’m seriously considering adding one to my stable, that's how good this bike is.

Read the full review here

Cycling Weekly review the Camino

"Available both in aluminium and titanium, there are options for those on a budget as well as those looking for a dream build. Regardless of the chosen material, both frames feature the same design elements that make this an incredibly practical bike.

The cables are external and fully housed, making them well-sealed from any grime degrading shifting quality. They are also a lot easier to work on should you be unfortunate enough to be subject to a mid-ride mechanical.

Downtube bottle bosses, mounting points on the carbon front fork, discrete mounts for mudguards and the ability to take a pannier rack make this bike capable for carrying large loads. Keeping the steering under control and inspiring confidence on technical descents are the slack head angle together with the long wheelbase".

Read the full review here

Singletrack review the Sonder Camino Al
With its flexible wheel size options and plenty of tyre clearance, there’s scope for building the Sonder Camino AL however you want it. However, as built, this Rival 1 option seems to me to be a great fit straight out the box. If you can’t fork out for this higher end build kit straight away, the ride quality is such that the frame makes a good candidate for later upgrades, and the handling is simply excellent. Unless your heart is set on steel, titanium, or carbon, I can’t think of a reason why you wouldn’t want this bike. I do want this bike, and I’m genuinely sorry to be sending it back.
Testing The Sonder Camino Al

A great value bike capable of much more both on and off road than the price might suggest.

Read the full review here.
