    Santiago Apex1 Hydraulic

    Reynolds steel touring bike

    $1,699 $2,049

    1

    Select Options

    2

    Customize

    3

    Select Accessories

    Reset

    Steel tourer with single ring setup for low maintenance riding, geared up for going far
    Buy Now. Be Riding in 10 days.

    1

    Select Options

    Edit

    • Size
    • Colour

    • Size:

    • Colour:

    2

    Customize

    Edit

    Every Sonder bike is built to order so tell us exactly how you want it. Make any changes you want from the standard build and when you're done, just hit “Add to Bag” at the bottom of the page.

    Handlebar Tape

    Sonder Reels
    Sonder Reels Black

    +$0.00

    Brooks Cambium Rubber Bar Tape [OEM]
    Brooks Cambium Rubber Bar Tape Black

    +$49.99 +$42.49

    Brooks Cambium Rubber Bar Tape [OEM]
    Brooks Cambium Rubber Bar Tape Brown

    +$49.99 +$42.49

    grepp ultimate grey - closed
    Grepp Handlebar Tape Ultimate Gray

    +$24.99

    Brooks Cambium Rubber Bar Tape [OEM] / Orange
    Brooks Cambium Rubber Bar Tape / Orange

    +$49.99 +$42.49

    Handlebar

    Sonder Spitfire [OEM]
    Sonder Spitfire 400mm

    +$0.00

    Sonder Spitfire [OEM]
    Sonder Spitfire 420mm

    +$0.00

    Sonder Spitfire [OEM]
    Sonder Spitfire 440mm

    +$0.00

    Sonder Spitfire [OEM]
    Sonder Spitfire 460mm

    +$0.00

    Sonder Hurricane [OEM]
    Sonder Hurricane 400mm

    +$0.00

    Sonder Hurricane [OEM]
    Sonder Hurricane 420mm

    +$0.00

    Sonder Hurricane [OEM]
    Sonder Hurricane 440mm

    +$0.00

    sonder bomber flared drop bar handlebar
    Sonder Bomber 56cm

    +$0.00

    sonder crest dropbar handlebar for gravel riding
    Sonder Crest Handlebar 440 mm

    +$74.99 +$64.99

    sonder crest dropbar handlebar for gravel riding
    Sonder Crest Handlebar 480 mm

    +$74.99 +$64.99

    sonder crest cargo dropbar handlebar for bikepacking
    Sonder Crest Cargo Handlebar 440mm

    +$124.99 +$99.99

    sonder crest cargo dropbar handlebar for bikepacking
    Sonder Crest Cargo Handlebar 480mm

    +$124.99 +$99.99

    sonder bomber flared drop bar handlebar
    Sonder Bomber 56cm

    +$0.00

    Saddle

    Sonder Abode [OEM]
    Sonder Abode Black / 138

    +$0.00

    Sonder Abode [OEM]
    Sonder Abode Black / 158

    +$0.00

    Sonder Kura [OEM]
    Sonder Kura

    +$59.99 +$49.99

    Sonder Zone [OEM]
    Sonder Zone 133 / Black

    +$44.99 +$37.49

    Sonder Zone [OEM]
    Sonder Zone 152 / Black

    +$44.99 +$37.49

    Brooks Cambium C17 Saddle [OEM] / All Weather / Black
    Brooks Cambium C17 Saddle / All Weather / Black

    +$144.99 +$117.49

    Brooks B17 Saddle [OEM] / Black
    Brooks B17 Saddle / Black Black

    +$169.99 +$137.49

    Seatpost

    Sonder Seatpost [OEM] 27.2
    Sonder Seatpost 27.2 400mm

    +$0.00

    sonder ingot 27.2mm layback titanium seatpost
    Sonder Ingot 27.2mm Layback

    +$187.49 +$149.99

    sonder ingot 27.2mm straight inline seatpost
    Sonder Ingot 27.2mm Inline

    +$187.49 +$149.99

    Cane Creek eeSilk+ [OEM]
    Cane Creek eeSilk+ 27.2mmm / Alloy

    +$287.49 +$232.49

    Stem

    Sonder Storc [OEM]
    Sonder Storc 60mm

    +$0.00

    Sonder Storc [OEM]
    Sonder Storc 70mm

    +$0.00

    Sonder Storc [OEM]
    Sonder Storc 80mm

    +$0.00

    Sonder Storc [OEM]
    Sonder Storc 90mm

    +$0.00

    Sonder Storc [OEM]
    Sonder Storc 100mm

    +$0.00

    Sonder Storc [OEM]
    Sonder Storc 110mm

    +$0.00

    Sonder Storc [OEM]
    Sonder Storc 120mm

    +$0.00

    Sonder Stelo bike stem 60mm
    Sonder Stelo 60mm

    +$44.99 +$37.49

    Sonder Stelo bike stem 60mm
    Sonder Stelo 70mm

    +$44.99 +$37.49

    Sonder Stelo bike stem 80mm
    Sonder Stelo 80mm

    +$44.99 +$37.49

    Sonder Stelo bike stem 80mm
    Sonder Stelo 90mm

    +$44.99 +$37.49

    Sonder Stelo bike stem 80mm
    Sonder Stelo 100mm

    +$44.99 +$37.49

    Sonder Stelo bike stem 120mm
    Sonder Stelo 110mm

    +$44.99 +$37.49

    Cane Creek eeSilk Stem [OEM] / With Compliance Switch / 70mm
    Cane Creek eeSilk Stem / With Compliance Switch / 70mm

    +$294.99 +$237.49

    Cane Creek eeSilk Stem [OEM] / With Compliance Switch / 80mm
    Cane Creek eeSilk Stem / With Compliance Switch / 80mm Black

    +$294.99 +$237.49

    Tubes

    WTB [OEM] Inner Tube / 700 / 28-38
    WTB Inner Tube / 700 / 28-38 Black

    +$0.00

    Tubeless Tyre Upgrade and Setup
    Tubeless Tyre Upgrade and Setup

    +$57.49

    Chainset

    Sram Apex1 Wide Chainset [OEM]
    Sram Apex1 Wide Chainset 165mm / 40t

    +$0.00

    Sram Apex1 Wide Chainset [OEM]
    Sram Apex1 Wide Chainset 170mm / 40t

    +$0.00

    Drivechain

    XPLR Gears
    XPLR Gears / 11-44t Cassette

    +$0.00

    Mullet Gears
    Mullet Gears / Apex Eagle / 11-50t Cassette

    +$74.99

      3

      Select Accessories

      Edit

      Front Lights

      No Front Light
      No Front Light (none)

      +$0.00

      Tau Rear
      Tau Rear Rear

      +$22.49 +$19.99

      Tau Rear
      Tau Rear Front

      +$22.49 +$19.99

      Tau Front
      Tau Front Front

      +$22.49 +$19.99

      Phase 550
      Phase 550

      +$32.49 +$24.99

      Phase 850
      Phase 850

      +$44.99 +$37.49

      alpkit hadron bike light
      Hadron

      +$124.99 +$99.99

      Rear Lights

      No Rear Light
      No Rear Light (none)

      +$0.00

      Tau Rear
      Tau Rear Rear

      +$22.49 +$19.99

      Tau Rear
      Tau Rear Front

      +$22.49 +$19.99

      Lights Accessories

      No Bike Light Accessories
      No Bike Light Accessories (none)

      +$0.00

      alpkit helmet mount bike light gps
      Helmet Mount Black

      +$9.99 +$8.99

      alpkit cockpit bike light gps mount
      Garmin Outfront Mount / Black

      +$34.99 +$24.99

      Mudguards

      No Mudguards
      No Mudguards (none)

      +$0.00

      sonder defender mudguards pair
      Sonder Defender Mudguards 45mm

      +$44.99 +$37.49

      Pannier

      No Pannier Rack
      No Pannier Rack (none)

      +$0.00

      BACLMRACK-01-love mud mool
      Sonder Mool

      +$49.99 +$42.49

      BLUPPTOUR-BLK-01-passport_tour_rack_black
      Passport Tour Rack Black

      +$57.49 +$47.49

      Pedals

      No Pedals
      No Pedals (none)

      +$0.00

      reko clipless bike pedal
      Sonder Reko

      +$0.00

      contact clipless road bike pedal
      Sonder Contact

      +$0.00

      distortion flat mountain bike pedal
      Sonder Distortion

      +$0.00

      Sonder Torque
      Sonder Torque Black

      +$49.99 +$42.49

      reko clipless bike pedal
      Sonder Reko

      +$69.99 +$49.99

      contact clipless road bike pedal
      Sonder Contact

      +$74.99 +$57.49

      distortion flat mountain bike pedal
      Sonder Distortion

      +$84.99 +$64.99

      sonder slingshot clipless pedal
      Sonder Slingshot Black

      +$99.99 +$84.99

      Chainstay Protector

      No Chainstay Protector
      No Chainstay Protector (none)

      +$0.00

      Sonder Silencer
      Sonder Silencer Road

      +$14.99 +$12.49

        Initial Price

        Santiago Apex1 Hydraulic / Select a frame...
        $1,699.00

        Extras

        $0.00

        Total Price

        $1,699.00
        Buy Now. Be Riding in 10 days.

        Santiago knows its heritage; cold-worked, air hardened steel (100% recycled) is steeped in the history of long distance riding. But with bang up-to-date geometry, Santiago has a refreshing feel that you know will be good for years to come: 450 mm chainstays, 1.1 m wheelbase, 71 degree head angle, a fork rake of 55 and generous tyre clearance. This makes for a truly comfortable, fast, assured bike, both in its own right (audax slaying, winter riding) or when racked up for multi-month adventures.

        At a Glance

        • SRAM Apex 1 12-speed groupset
        • Santiago Steel fork
        • Sonder Nova 700c UK Made wheelset
        • Reynolds 631 steel frame
        Apex1

        Apex 1 is a single ring 40 chainset with an 11 – 42t cassette in the back, giving you low enough gearing for tackling the climbs unloaded with the simplicity of a 1x chainset.

        Features

        Reynolds 631 steel tubing

        Durable, smooth and assured on those multi-month trips Reynolds 631 steel is an excellent material for round-the-world touring where you’re completely dependent on your bike. We’d be surprised if you needed to get your frame repaired, but it’s comforting to know that finding a steel welder in the middle of nowhere is far easier than getting your alloy frame repaired.​

        Traditional bike, contemporary geometry

        Santiago’s takes classic road bike geometry as a starting point, with a longer wheelbase and higher stack height for a more comfortable riding position and assured ride, whether you’re travelling light or fully loaded up.

        Generous tyre clearance

        Clearance for up to 650b x 47 mm or 700c x 37 mm tyres that make your ride more comfortable and give better grip on the bitumen as you corner.

        Full traditional mounts

        With full rack and guard mountains, 3 sets of bottle cage bosses and extra cage mounts on the fork, Santiago can handle being fully loaded up.

        Build Spec
        Frameset
        Frame:Santiago Frame | Reynolds 631 steel
        Fork:Santiago Steel | Straight
        Headset:FSA Orbit MX Headset | 1 1/8"
        Groupset
        Shifters:SRAM Apex | 1x | 12-speed
        Brakes:SRAM Apex | Hydraulic | Flat mount
        Rotors:SRAM Centerline | 160mm (front), 160mm (rear) | 6-bolt
        Rear derailleur:SRAM Apex | Long cage | 12-speed
        Chainset:SRAM Apex 1 Wide Chainset | 12-Speed
        Cassette:SRAM PG-1231 | 11-44t | 12-speed
        Chain:SRAM Apex Chain | 12-speed
        Bottom bracket:SRAM DUB | BSA | 68mm
        Wheelset
        Wheels:Sonder Alpha EX UK Made
        Tyres:Goodyear County Tubeless |700c | 35 | Black
        Tubes:WTB | 700c x 28-38mm
        Finishing kit
        Handlebars:Sonder Spitfire
        Stem:Sonder Storc
        Seatpost:Sonder Seatpost | 27.2mm
        Saddle:Sonder Abode
        Tape:Sonder Reels | Black
        Weight
        Frame:S: 2.35kg; M: 2.4kg; L: 2.5kg; XL: 2.6kg; (Plus fork: 1.35kg)
        Build:S: TBC M: TBC L: TBC XL: TBC
        Pedals not included with full builds
        Specifications are subject to change without notice
        Geometry and Sizing

        Sizing

        Generally we recommend:
        Small: Riders between 5ft 2in and 5ft 7in (157-170cm)
        Medium: Riders between 5ft 6in and 5ft 10in (167-177cm)
        Large: Riders between 5ft 9in and 6ft 2in (175-187cm)
        X-Large: Riders 6ft 2in and over (187cm)

        You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

        Size Small Medium Large X-Large
        Stem Length 80mm 90mm 100mm 110mm
        Bar Width 400mm 420mm 440mm 460mm
        ST-Seattube 460 500 540 580
        TT-Toptube 532 554.1 571.7 582.3
        HT-Headtube 120 145 170 190
        HA-Headangle 72 72 72 72
        SA-Seatangle 73.5 73.5 73.5 73.5
        CS-Chainstay 420 420 420 420
        BB-BBdrop 70 70 70 70
        FO-Forkoffset 50 50 50 50
        WB-Wheelbase 991.2 1018.9 1027.2 1038.2
        SO-Standover 749.1 779.2 812.2 842.5
        RE-Reach 375 390 400 405
        SK-Stack 528 553.9 579.5 598.6

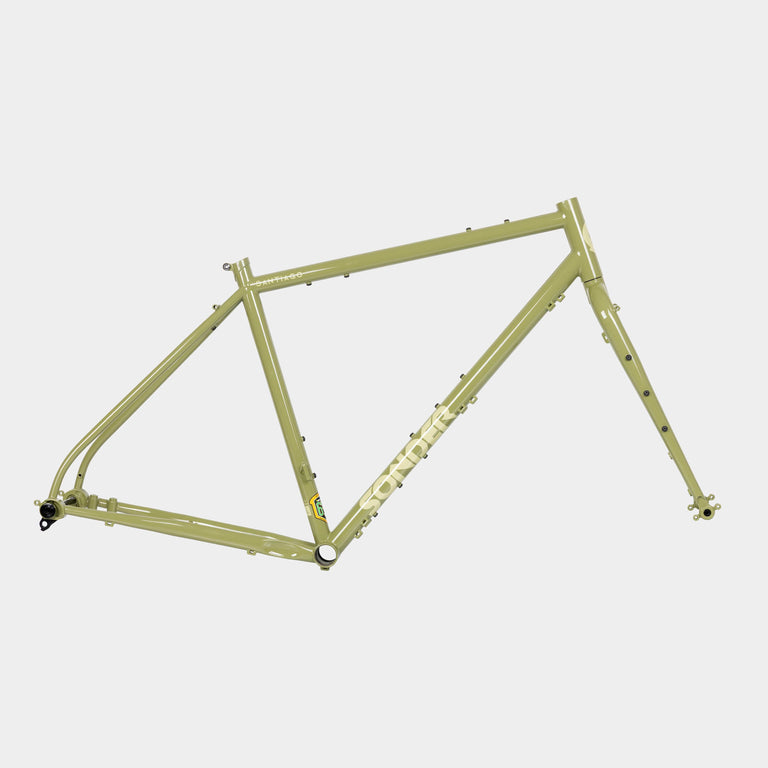

        Frame Spec

        Durable, comfortable, Reynolds steel frame

        Weight: S: 2.34kg; M: 2.4kg; L: 2.5kg; XL: 2.59kg (plus fork 1.35kg)
        Reynolds 631 steel, cold worked, air hardened seat tube, top tube and down tube
        Chromoly fork and read frame
        68 mm BSA threaded BB
        Straight headtube (EC34) to fit 1 1/8” fork
        100 mm front, 142 mm rear bolt-through dropouts
        Flat mount disc brake compatible (160mm front, 140mm rear)
        Full rack/guard mounts
        Tyre clearance for 700 x 37 mm, 650b x 47 mm tyres

        Your actual build date will depend on additional components you specify and from receipt of full payment. For any queries contact our Sonder team on +44 1773 417006.
