Santiago Apex1 Flat Bar

Photos for illustration purposes. Please check the bike spec for detailed component listings.

Santiago Apex1 Flat Bar

Reynolds steel cycle touring road bike

$1,399.00

Flat-barred single ring setup for low maintenance riding, geared up for going far with the comfort of a flat bar

Read more

Read more

Sorry, this product isn't available at the moment.

Orderbook opens in 4 weeks for delivery in January.

Description

Santiago knows its heritage; cold-worked, air hardened steel is steeped in the history of long distance riding. But with bang up-to-date geometry, Santiago has a refreshing feel that you know will be good for years to come: 450 mm chainstays, 1.1 m wheelbase, 71 degree head angle, a fork rake of 55 and generous tyre clearance. This makes for a truly comfortable, fast, assured bike, both in its own right (audax slaying, winter riding) or when racked up for multi-month adventures.

At a Glance
Reynolds 631 steel frame for loading up and riding around the world
  • Frame: Sonder Santiago frame, Reynolds 631 steel
  • Fork: Sonder Santiago fork, Cromoly steel
  • Drivetrain: SRAM Apex1 / 1 x 11 / 11-42
  • Brakes: SRAM Level Direct hydraulic disc brakes
  • Wheelset: Sonder Alpha 700c
  • Tyres: WTB All Terrain / Comp / 700 / 35
  • Tyre clearance: up to 650b x 47 mm or 700c x 37 mm
  • Bolt-through axles with 12 x 100mm up front and 12 x 142mm at the rear
  • Full rack and guard mounts, 3 sets of bottle cage bosses
  • Flat bar for increased agility on-road and a more upright riding position
Apex1

Apex 1 is a single ring 40 chainset with an 11 – 42t cassette in the back, giving you low enough gearing for tackling the climbs unloaded with the simplicity of a 1x chainset.

..Read more
Features

Reynolds 631 steel tubing

Durable, smooth and assured on those multi-month trips Reynolds 631 steel is an excellent material for round-the-world touring where you’re completely dependent on your bike. We’d be surprised if you needed to get your frame repaired, but it’s comforting to know that finding a steel welder in the middle of nowhere is far easier than getting your alloy frame repaired.​

Traditional bike, contemporary geometry

Santiago’s takes classic road bike geometry as a starting point, with a longer wheelbase and higher stack height for a more comfortable riding position and assured ride, whether you’re travelling light or fully loaded up.

Generous tyre clearance

Clearance for up to 650b x 47 mm or 700c x 37 mm tyres that make your ride more comfortable and give better grip on the bitumen as you corner.

Full traditional mounts

With full rack and guard mountains, 3 sets of bottle cage bosses and extra cage mounts on the fork, Santiago can handle being fully loaded up.

Build Spec
Build Santiago Apex1 Flat
Frameset
Frame: Sonder Santiago Frame
Fork: Sonder Santiago Fork
Headset: FSA Orbit MX Headset / 1.125
Group Set
Left Brake: SRAM Apex 1 Shifters / Flat Bar
Right Brake: Tektro R280 / Front / 900mm / Black
Calipers: SRAM Rival Flat-Mount Hydraulic Calipers
Rotors: Tektro Rotor / 6 Bolt / 160mm
Rear Mech: Tektro R280 / Rear / 1500mm / Black
Chainset: SRAM Apex 1 Crankset GXP / 172.5mm / 40
Bottom Bracket: SRAM Bottom Bracket / Standard
Chain: SRAM PC1110 Chain / 118 Links
Cassette: SRAM PG1130 Cassette / 11 / 11-42
Finishing Kit
Stem: Love Mud Storc 31.8mm / 90mm
Seatpost: Sonder Seatpost / 27.2mm / 400mm
Saddle: Sonder Abode / Black
Tape/Grips: Love Mud Reels / Black
Handlebar: Sonder Aspect Riser
Wheelset
Wheels: Sonder Alpha 700c / HG
Tyres: WTB All Terrain / Comp / 700 / 35
Tubes: WTB Inner Tube / 700 / 28-38
Weight
Frame & Fork: S: 3.3kg; M: 3.5kg; L: 3.7kg; XL: 3.9kg
Built (approx): S: 11.7kg; M: 11.9kg; L:12.1kg; XL: 12.3kg
Pedals not included with full builds
Geometry and Sizing

Sizing

Generally we recommend:
Small
Riders between 5ft 2in and 5ft 7in
Medium
Riders between 5ft 6in and 5ft 10in
Large
Riders between 5ft 9in and 6ft 2in
X-Large
Riders 6ft 2in and over
You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.
Size Small Medium Large X-Large
ST - Seat tube 470 500 530 570
TT - Top tube 543 563 584 605
HT - Head tube 120 140 160 180
HA - Head angle 71 71 71 71
SA - Seat angle 73 73 72.5 72.5
CS - Chainstay 450 450 450 450
BB - BB drop 73 73 73 73
FO - Fork offset 55 55 55 55
WB - Wheelbase 1042 1063 1085 1106
SO - Stand over TBC TBC TBC TBC
RE - Reach 370 385 400 415
SK - Stack 566 585 604 623
Fork A-C 395 395 395 395

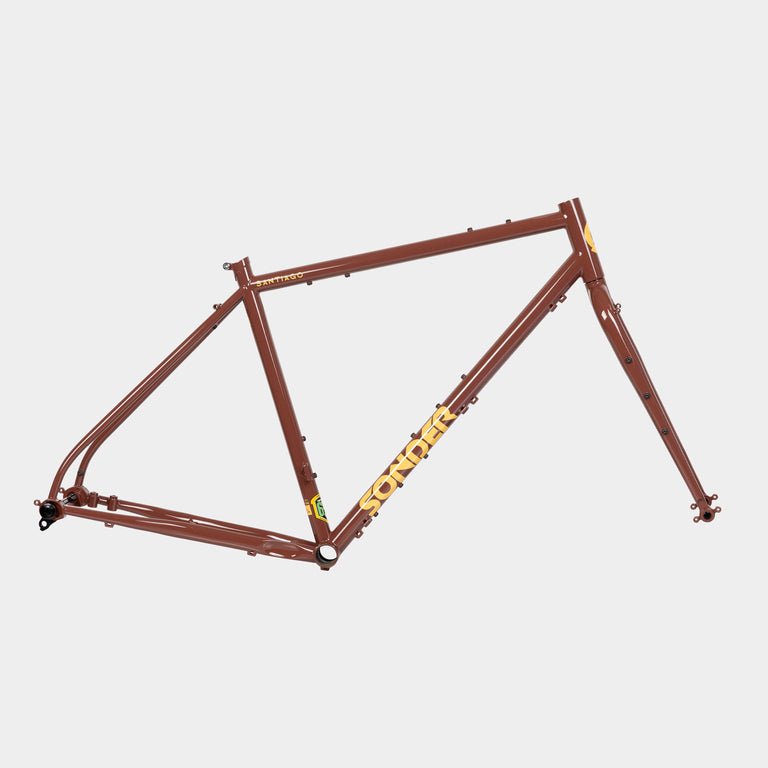

Frame Spec

Durable, comfortable, Reynolds steel frame

Weight (Frame and Fork): S: 3.3kg; M: 3.5kg; L: 3.7kg; XL: 3.9kg
Reynolds 631 steel, cold worked, air hardened seat tube, top tube and down tube
Chromoly fork and read frame
68 mm BSA threaded BB
Straight headtube (EC34) to fit 1 1/8” fork
100 mm front, 142 mm rear bolt-through dropouts
Standard 160 mm post mount disc brakes
Full rack/guard mounts
Tyre clearance for 700 x 37 mm, 650b x 47 mm tyres
